Rectified tiles joint width: complete selection guide 2026

By Osman Orman · Tile and technical specialist at Tegelmonsters

The joint width for rectified tiles indoors is usually between 2 and 3 millimeters, with a tighter joint on walls and a slightly wider joint on floors. The exact figure depends on the production process and the substrate.

For project specifications, that is not a matter of taste. It is derived from the tile format, the standard for the grout, and the zone in which the tile will be laid.

Operation & technology

What grout width goes with rectified tiles?

A rectified tile has cleanly ground edges. This allows it to be laid with a narrow grout joint, creating a calm, modern look. The edge finish is square and the caliber is more uniform than with a tile with a natural flame edge. This gives the installer the margin to achieve smaller grout widths without variations between tiles becoming visible.

However, the minimum joint width is not zero. Industry guidelines for ceramic tiling specify 2 mm as the technical minimum indoors, and 3 mm on floors for project reliability. On outdoor floors, 5 mm is recommended due to thermal expansion and water absorption. These figures are derived from the practical experience of thin-bed mortar installation, not from a fixed standard.

The main argument against 0 mm is movement. Every tile expands and contracts under temperature and humidity fluctuations. Without grout, edge stress occurs, resulting in chips and hairline cracks. A 2 mm grout absorbs this micro-movement while remaining visually almost invisible. For the background of rectification as a technique, read in our explanation about rectified tiles how the grinding process affects the appearance.

Production process

How exactly is a rectified edge created?

The ceramic industry works with the European standard EN 14411. This standard classifies tiles based on water absorption and defines the difference between porcelain, ceramic, and earthenware. Porcelain is a fully ceramic, fired stoneware tile with a water absorption of less than 0,5 percent. Premium porcelain from the range falls into class BIa of EN 14411 and is therefore the hardest, most dimensionally stable type.

After firing, tiles always have a slight dimensional deviation. The clay pressure and the firing cycle give every production run a tolerance of a few tenths of a millimeter. For a standard tile, this is not a problem – the natural fire edge conceals it within a wider joint. During rectification, each tile is reworked to a predetermined caliber on a diamond grinding wheel after firing.

That gauge is indicated on the box. For example, a batch with gauge 1 is 599,2 millimeters, and a batch with gauge 2 is 599,8 millimeters. In a project involving multiple pallets, installers adhere to the gauge line to avoid visible dimensional differences on the floor. In our knowledge base There is more technical background information on ceramic standards and classifications.

In addition to grinding the main edge, there is also a small chamfer. This micro-bevel prevents sharp edges that could chip off during transport. The chamfer is barely visible to the naked eye, but it is functional. In a 2 mm joint, the micro-bevel, together with the joint mortar, forms a smooth line that visually enhances the surface.

Decision table

Which joint width fits per zone and per format?

Joint width is determined by a combination of three variables: the tile type, the zone, and the size. The table below lists the most common project situations. The figures serve as a minimum; an experienced installer may sometimes choose a millimeter wider for added certainty.

The figures are derived from industry guidelines for ceramic tiling and from product practice within the framework of the Dutch Building Decree. For a residential bathroom, therefore, you choose 2 mm on the walls and 3 mm on the floor if rectified tiles are used. A kitchen floor with large-format porcelain requires 3 to 4 mm. For projects in a bathroom of kitchen Architects often filter our range by size and finish before requesting a sample pack.

For an outdoor floor or a roof terrace, 5 mm remains the standard. A rectified edge does not change this. Frost-thaw cycles, rainwater, and the expansion of the paving subfloor literally require more space for movement and drainage. A narrow joint in an outdoor project leads to cracking within a few seasons.

Consideration

When do you choose rectified, and when not?

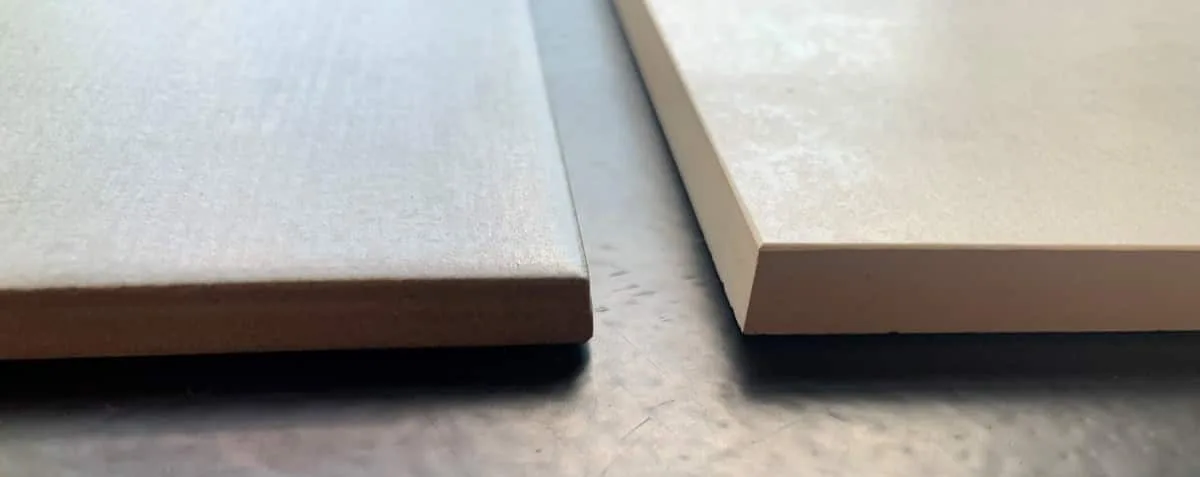

The choice between rectified and non-rectified is not a judgment of quality. A tile with a natural flame edge is technically just as good; only the visual outcome is different. The table below compares the criteria as project teams weigh them against each other in a specification.

For rustic small-format applications, a non-rectified tile is often more suitable. Think of a ceramic subway tile behind a bar, or a hand-painted wall tile in a hotel lobby. The warm grout is part of the style. Forcing it with rectification would make the look smooth and sterile. In our article about laying patterns You can see how size selection and joint direction work together.

With large formats, the choice is the other way around. A 60×120 or 120×120 floor with a natural flame edge requires a 4 mm joint, and that substantial joint breaks the visually continuous effect that is precisely desired with large formats. Therefore, virtually every premium porcelain collection comes standard with rectified edges.

Large format

How does large format change the choice of joint width?

A tile moves under temperature changes. The ceramic expansion coefficient is around 7 micrometers per meter per degree Celsius. For underfloor heating with a delta of 25 degrees, this amounts to 0,18 millimeters of movement per meter of tile. On a 120-centimeter-wide tile, this is over 0,2 millimeters; on a 320-centimeter slab, this increases to over half a millimeter per element.

Those numbers seem small, but over a long row of flooring, they add up. A 10-meter-wide floor with large-format tiles on underfloor heating has a cumulative movement of several millimeters. The grout must compensate for this through flexibility, and the joint width must allow for it. That is why installation manuals recommend 3 to 4 mm for large format tiles instead of the minimum 2 mm.

With underfloor heating, there is an additional requirement. The grout must be classified for cyclic expansion according to EN 13888-1:2022. In practice, this means a CG2 mortar with the designation W for low water absorption and an additive that limits crack growth. For the combination with underfloor heating, it offers our article about tiles and underfloor heating an overview of practical points to consider.

For slabs from 160×320 centimeters, an additional rule applies: install expansion joints at the subfloor level every 25 square meters and at every wall connection. This is not a joint width issue in the tile itself, but a prerequisite for the entire specification. Anyone sawing slabs will find in the explanation about XXL saws the working method that installers use in our projects.

Jointing material

Which grout and grout color suit a narrow joint?

The choice of joint mortar follows from the European standard. NEN-EN 13888-1:2022This standard classifies joint mortars by binder (CG cement-based or RG reaction resin), performance level (1 basic, 2 improved), and optional designations W for low water absorption and A for wear resistance. For a narrow joint in a home, you typically use CG2WA. In an industrial kitchen or wet room, project teams recommend an RG mortar.

The grain size of the joint mortar matters. A mortar with coarse grains of more than 1 millimeter does not compact well in a 2 mm joint. Manufacturers of joint mortar therefore indicate on the bag for which joint width the product is suitable. A fine-grained variant of 0,5 millimeters works for joints of 1 to 6 millimeters; a coarser variant only works from 4 millimeters upwards.

The grout color is a second decision point. A tone-on-tone grout, in the same color as the tile, allows the surface to flow seamlessly and reinforces the sleek effect evoked by a rectified tile. A contrasting grout accentuates the pattern and is strong in design-oriented projects. our explanation about grout colors The color families that occur most frequently in projects are described.

Maintenance is the final link. White grout gets dirty faster than warm grey grout. In a kitchen or hospitality environment, a grey shade is often more practical. For cleaning advice per grout type, read on. our cleaning articleOur manufacturers Pamesa Ceramica from Spain and Aleluia Ceramica from Portugal showcase new grout colour collections at the Cersaie trade fair every year, which accompany their rectification collections.

Specification

How do you enter joint width in a project specification?

The Building Decree frameworks in Building Decree 2012 set performance requirements for floors in wet rooms and for the flatness of finishing layers. These requirements have not been translated into a specific joint width, but rather into a flatness tolerance that the substrate must meet. NEN 2747 specifies the flatness classes commonly used in specifications for finishing floors.

In practice, a specification rule looks like this: tile format 60×120 cm, rectified, caliber 1, joint width 3 mm, grout CG2WA according to EN 13888-1, joint color grey on color number 35. With those five parameters, the contractor knows enough. We advise architects and project managers on drafting this rule and ensure that sampling matches the chosen caliber line.

For architects working with large formats or slabs for the first time, we recommend a test area of ​​four tiles in the chosen joint width on a test setup. This allows you to see the color, joint, and caliber effects together before the specifications are finalized. The team at Tile samples guides that process in our showroom in Utrecht. The showroom is accessible to professionals by appointment only.

Sample package

How do you put together a sample pack for your project?

On the page floor tiles Filter for free by zone, size, color, and finish. For a bathroom or kitchen project, select the application page that matches the focus of the design. For each zone, you can immediately see which rectified collections are in stock and which we can send as a sample.

With the Monstermap tool on tegelmonsters.nl, you bundle tiles by project and keep track of the selection centrally. This is especially helpful for projects where multiple zones are involved in the process simultaneously. You combine floor, wall, and bar tiles and share the selection with your client before the samples are delivered.

In the projects handled by us, we increasingly see that an initial filtering round is completed online, followed by a physical assessment in our showroom in Utrecht. This way, the sample request remains accessible, and the showroom appointment serves as a targeted in-depth look at an already shortened longlist.
